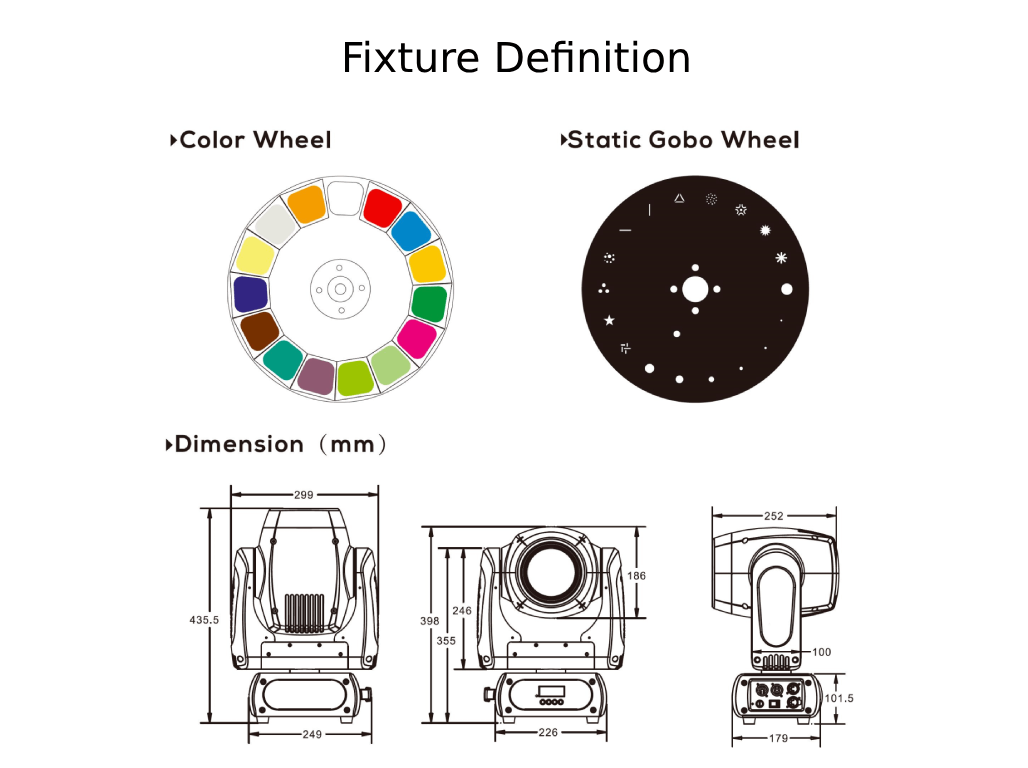

Fixture Definition
Riportiamo di seguito informazioni utili sulle fixture presenti online, vi ricordo che la lista completa la trovate direttamente nell’app:

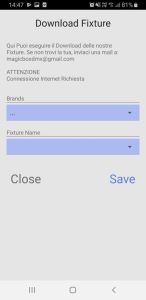

menu → Fixture → Download Fixture
Here you can find out the fixture definition. Open the app and click:
menu → Fixture → Download Fixture
Smartbat wireless 6×18 RGBWA UV
djRubino
djRubino#Par 6×18 Battery_10
(modalità 10 canali dmx)
1 | Intensity | dimmer
2 | Red | rosso
3 | Green | verde
4 | Blue | blue
5 | White | bianco
6 | Ambra | ambra
7 | UV | uv
8 | Strobo | strobo
9 | Color | macro color
10 | Speed Color | speed color
Mini Par 12 Led
djRubino
djRubino#miniParLedRGBW_8
(modalità 8 canali dmx)
1 | Intensity | dimmer
2 | Red |
3 | Green |
4 | Blue |
5 | White |
6 | Strobo |
7 | Color |
8 | Speed Color |

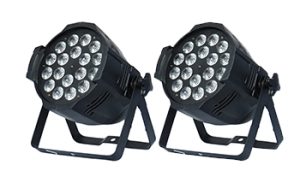

Par Led 18x10W RGBW 4in1 Full Color
djRubino
djRubino#Par 18×12 rgbw_7
(modalità 7 canali dmx)
1 | Intensity | dimmer
2 | Red | rosso
3 | Green | verde
4 | Blue | blue
5 | White | bianco
6 | Strobo | strobo
7 | Fx1 | macro color
MINI MOVING HEAD LED SPOT 30W CREE GOBOS
djRubino
djRubino#miniSpot30Watt_10
(modalità 10 canali dmx)
1 | Pan |
2 | fine pan
3 | Tilt |
4 | fine tilt
5 | Speed p/t
6 | Intensity
7 | Strobo
8 | Color
9 | Gobo
10 | Reset
djRubino
djRubino#miniSpot30Watt_11
(modalità 11 canali dmx)
1 | Pan
2 | Fine Pan
3 | Tilt
4 | Fine Tilt
5 | Color | Color
6 | Gobo | Gobos
7 | Strobo | Strobo
8 | Intensity | Dimmer
9 | Speed p/t
10 | Fx1 | Auto mode
11 | Reset | Reset
djRubino
djRubino#miniSpot30Watt_12
(modalità 12 canali dmx)
(Versione con Strip Led avanti)
1 | Pan |
2 | Fine Pan|
3 | Tilt |
4 | Fine Tilt|
5 | Color |
6 | Gobo |
7 | Strobo |
8 | Intensity |
9 | undefined |
10 | Fx1 | automatic mode
11 | Reset |
12 | Fx2 | light strips
TESTA MOBILE WASH LED 36X18W RGBW
djRubino
djRubino#Wash 36×12 RGBW_16
(modalità 16 canali dmx)
1 | Intensity | dimmer
2 | Red |
3 | Green |
4 | Blue |
5 | White |
6 | Altro |
7 | Pan |
8 | Tilt |
9 | fine pan
10 | fine tilt
11 | pan/tilt speed
12 | Focus |
13 | Strobo |
14 | Fx1 |
15 | Fx2 |
16 | Reset |
TESTA MOBILE WASH LED 36X18W RGBW A UV
djRubino
djRubino#Wash 36×18 RGBWAUV_19
(modalità 19 canali dmx)
1 | Pan
2 | fine pan
3 | Tilt
4 | fine tilt
5 | speed p/t
6 | Intensity
7 | Strobo
8 | Red
9 | Green
10 | Blue
11 | White
12 | UV
13 | Ambra
14 | No Function
15 | Color | macro color
16 | Speed Color | color speed
17 | Focus
18 | Reset
19 | Altro | motor reverse
SHARPY BEAM 230 W 7R TOUCH SCREEN
djRubino
djRubino#Beam 7r Wisdom_16
(modalità 16 canali dmx)
1 | Color |
2 | Strobo |
3 | Intensity |
4 | Gobo |
5 | Prisma |
6 | Rotazione Prisma |
7 | No Function
8 | Frost |
9 | Focus |
10 | Pan |
11 | fine pan
12 | Tilt
13 | fine tilt
14 | p/t Speed
15 | Reset |
16 | lampada off 36 on 255
SHARPY SUPER BEAM LED 4X25
djRubino
djRubino#SuperBeam_17
(modalità 17 canali dmx)
1 | Pan
2 | fine pan
3 | Tilt
4 | fine tilt
5 | speed p/t
6 | Color
7 | Fx1 | lens
8 | Fx2 | shake
9 | Intensity | dimmer
10 | Strobo | strobo
11 | Intensity | led 01
12 | Intensity | led 02
13 | Intensity | led 03
14 | Intensity | led 04
15 | Altro | macro
16 | Altro | speed macro
17 | reset
MOVING HEAD WASH LED 7X12 4IN1 RGBW FULL COLOR MINI TESTE MOBILI DJ EFFETTI
djRubino
djRubino#Wash 7X10 RGBW_14
(modalità 14 canali dmx)
1 Pan
2 fine pan
3 Tilt
4 fine tilt
5 speed p/t
6 dimmer – strobo
7 Red
8 Green
9 Blue
10 White
11 Color
12 Speed color
13 macro
14 reset
Sagitter
sagitter#smart beam_11
(modalità 11 canali dmx)
1 pan
2 fine pan
3 tilt
4 fine tilt
5 speed p/t
6 dimmer
7 strobo
8 color
9 gobo
10 Fx1
11 Reset
SAGITTER PIKEONE
Moving head beam 1R 100W
Sagitter
sagitter#pikeone1R_16
(modalità 16 canali dmx)
1 | Pan |
2 | fine pan|
3 | Tilt |
4 | fine tilt|
5 | p/t speed|
6 | Intensity |
7 | Strobo |
8 | Color |
9 | Gobo |
10 | Prisma |
11 | Rotazione Prisma |
12 | Fx1 |
13 | Fx2 |
14 | Frost |
15 | Focus |
16 | Reset | 99reset 199lampOff 255lampOn
Showtec Phantom 50 LED Spot Mk2
showtec
showtec#Phantom50Led_13
(modalità 13 canali dmx)
1 | Pan | pan
2 | Tilt | tilt
3 | fine pan
4 | fine tilt
5 | speed p/t
6 | Color | color
7 | Strobo | strobo
8 | Intensity | dimmer
9 | Gobo | gobos
10 | Rotazione Gobo | rotazione gobos
11 | Prisma | prisma
12 | Reset | 200 reset
13 | Fx1 | effect
DTS XR250
DTS
DTS#XR250-14ch_14
(modalità 13 canali dmx)
1 | Pan |
2 | Fine Pan|
3 | Tilt |
4 | Fine Tilt |
5 | Speed P/T|
6 | Intensity |
7 | Strobo |
8 | Color |
9 | Speed Color |
10 | Gobo |
11 | Rotazione Gobo |
12 | Prisma |
13 | Focus |
14 | Reset |

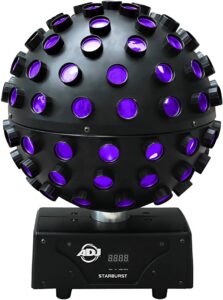

American dj – Starburst
AmericanDj
americandj#starburst_12
(modalità 12 canali dmx)
1 | Red |
2 | Green |
3 | Blue |
4 | White |
5 | Ambra |
6 | UV |
7 | Strobo |
8 | Intensity |
9 | Rotazione |
10 | Color |
11 | Fx1 |
12 | Reset |

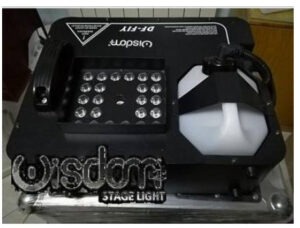

Macchina del Fumo (smoke machine)
djRubino
djRubino#Color Smoke_5
(modalità 5 canali)
1 | Fumo
2 | Color
3 | Green
4 | Blue
5 | Red

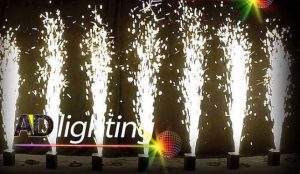

Sparcular (Fontana Fredda)
(modalità 2 canali)
Generic
Generic#Sparcular_2
1 | Fx1
2 | Fx2

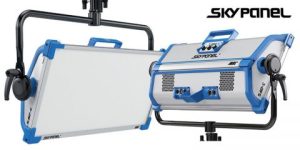

Arri#Skypanel-M01_12
(Modalità 1 CCT & RGBW 8 bit)
01 Intensity
02 CCT from 2800k to 10.000k
03 G/M
04 White/Color Crossdade
05 RED
06 GREEN
07 BLUE
08 WHITE
09 FAN
10 Preset
11 Strobo
12 Not Used
Arri#Skypanel-M22-effects_13
(modalità 22 effects)
1 | Intensity |
2 | Fx1 | effect selection
3 | Altro | param 1
4 | Altro | param 2
5 | Altro | param 3
6 | Altro | param 4
7 | Altro | param 5
8 | Altro | param 6
9 | Altro | param 7
10 | Altro | fan control
11 | Altro | preset
12 | Strobo |
13 | Altro | future use
sagitter#arrow300b_21
(modalità 21 canali dmx)
1 | Pan |
2 | FinePan |
3 | Tilt |
4 | FineTilt |
5 | undefined |
6 | Color |
7 | Gobo |
8 | Rotazione Gobo |
9 | Red | cyano
10 | Green | magenta
11 | Blue | yellow
12 | Altro | speed of CMY
13 | Altro | CMY abd color wheel
14 | Prisma |
15 | Fx1 | effect scene
16 | Frost |
17 | Altro | iris
18 | Focus |
19 | Strobo |
20 | Intensity |
21 | Reset | lamp on 255 – lamp off 70
MINI MOVING HEAD BEAM 12w CREE LED(4×3)
djRubino#miniBeam12w_13
1 | Pan |
2 | Tilt |
3 | Altro |
4 | Altro |
5 | Altro |
6 | Intensity |
7 | Strobo |
8 | Red |
9 | Green |
10 | Blue |
11 | White |
12 | Fx1 |
13 | Reset |
Wisdom Barra Led 24x3Watt
stageLighting#barraLed24x3RGB_7
1 | Intensity |
2 | Red |
3 | Green |
4 | Blue |
5 | Strobo |
6 | Color |
7 | Speed Color |
